BUCHLA 100 CLONES CONSTRUCTION
Buchla 100 Series Modules List of all of the 100 series modules that I know of. Red ones link to contruction tips 102 - Stereo Locator 106 - Mixer 107 - Voltage Controlled Mixer 110 - Dual Gate 111 - Dual Ring Modulator 112 - Touch Controlled Voltage Source 113 - Touch Controlled Voltage Source 114 - Touch Controlled Voltage Source 115 - Power Supply 120 - Distributor 123 - Sequential Voltage Source (8x3) 124 - Patchboard 130 - Dual Envelope Detector 132 - Waveform Synthesizer 140 - Timing Pulse Generator 144 - Dual Square Wave Generator 146 - Sequential Voltage Source (16x3) 148 - Harmonic Generator 150 - Frequency Counter 155 - Dual Integrator 156 - Control Voltage Processor 157 - Dual Voltage Inverter 158 - Sine/Saw Generator 170 - Dual Microphone Preamplifier 171 - Dual Instrument Preamplifier 172 - Dual Signal Leveler 175 - Dual Equalizer / Line Driver 176 - Dual Hiss Cutter 180 - Dual Attack Generator 185 - Frequency Shifter 191 - Sharp Cutoff Filter 194 - Band Pass Filters 195 - Octave Format Filter 196 - Phase Shifter
|

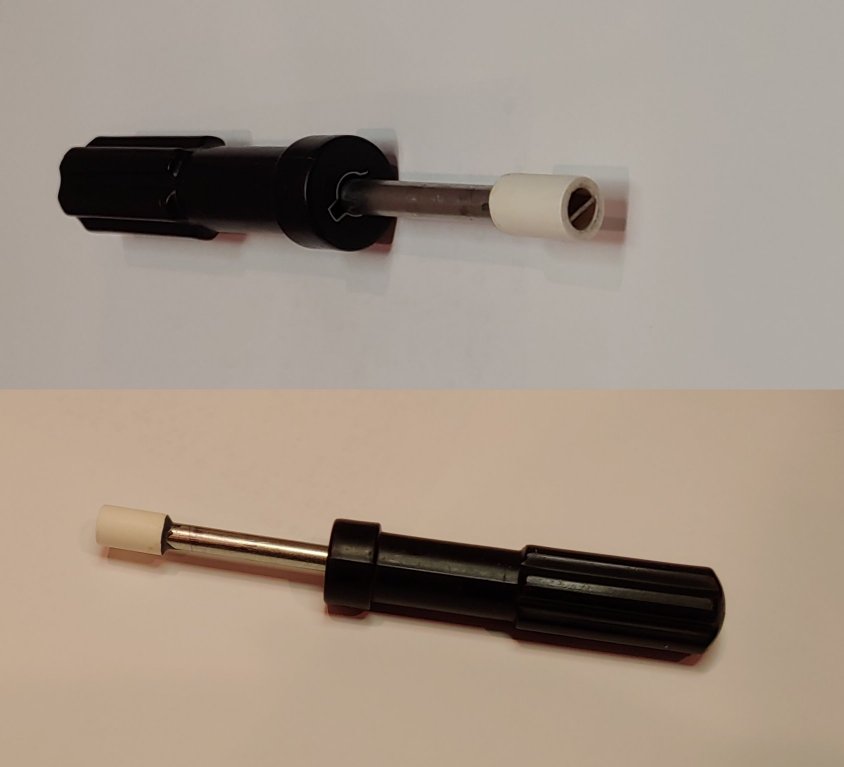

I used only slotted round and pan head screws like the original. So I made this with a crappy old screwdriver and a piece of plastic tubing using 5 minute epoxy. It keeps the screwdriver from slipping out of the slot and scratching up the panels.
|
