CGS07 Gate Sequencer and
CGS42 Gate Sequencer CV adapter

The CGS Gate Sequencer .

Wonderful combination! The Gate Sequencer allows for programming complex gate signals, and the CV adapter gives the traditional step voltages. This is better than a sequencer with on-off switches for the gate. Like the CGS28 Sequential Switch, these can be chained together for longer sequences.

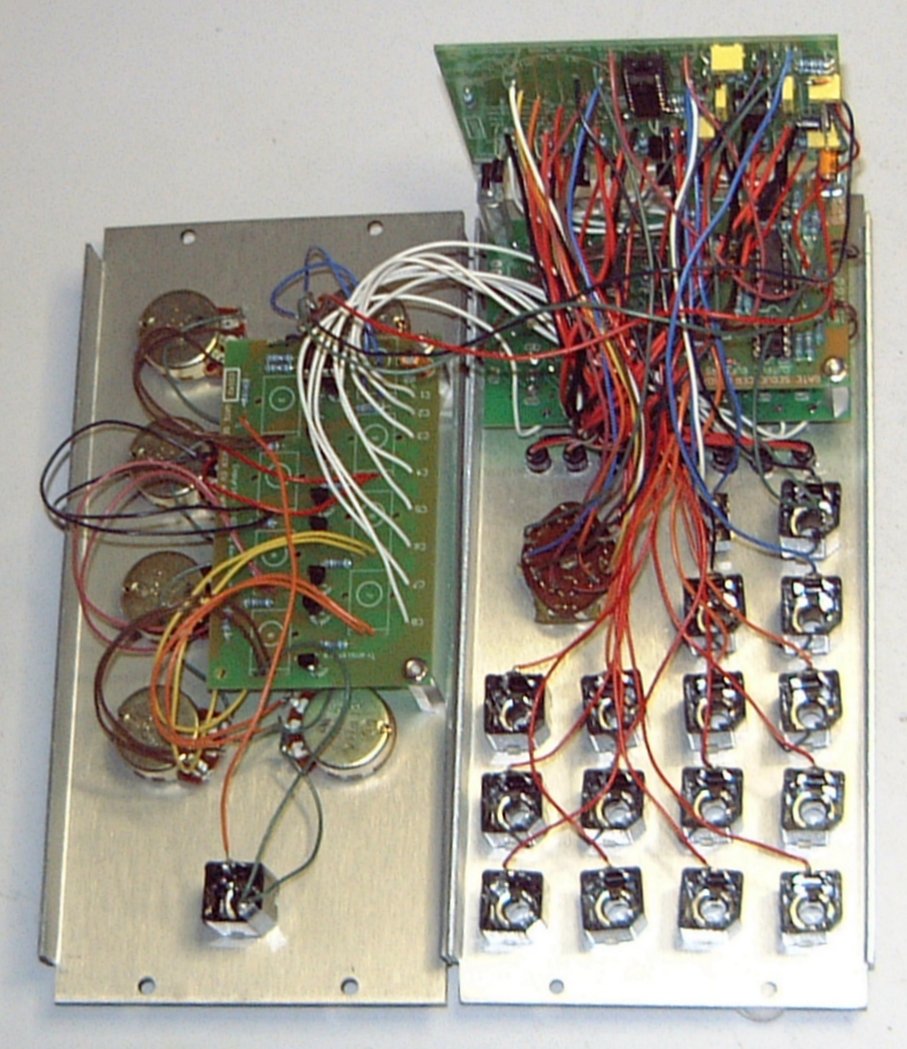

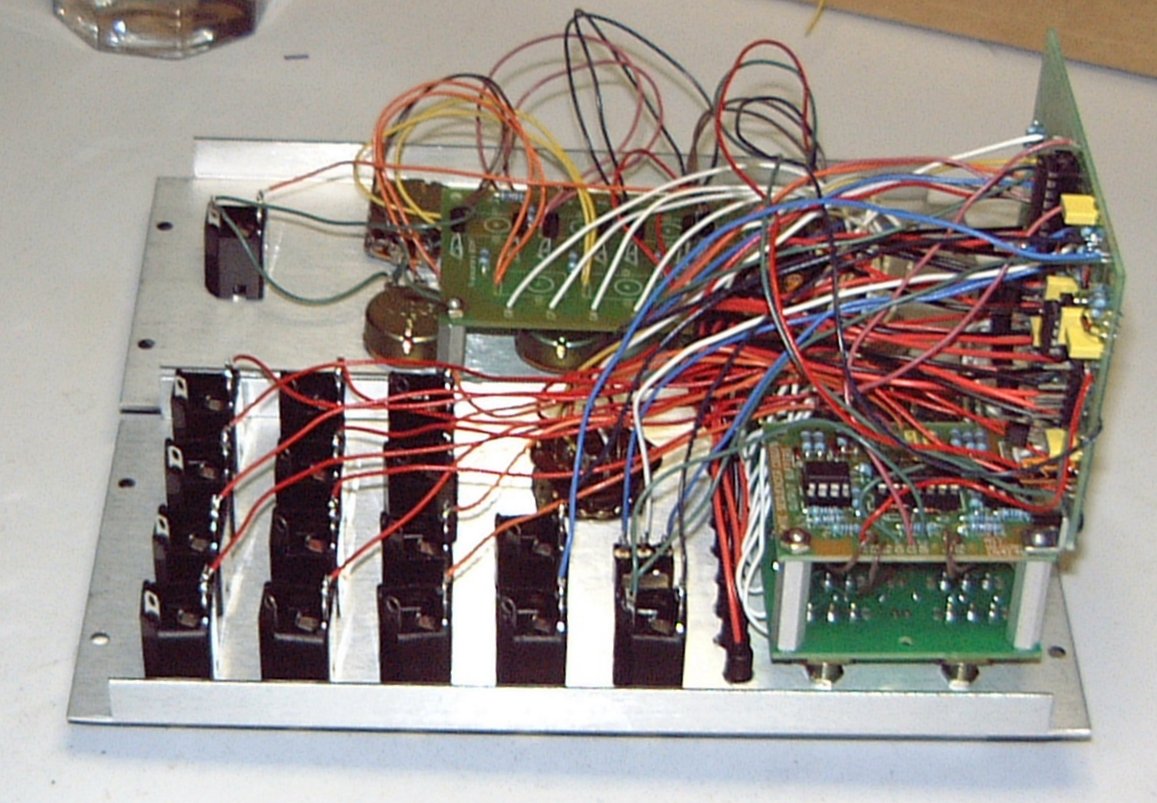

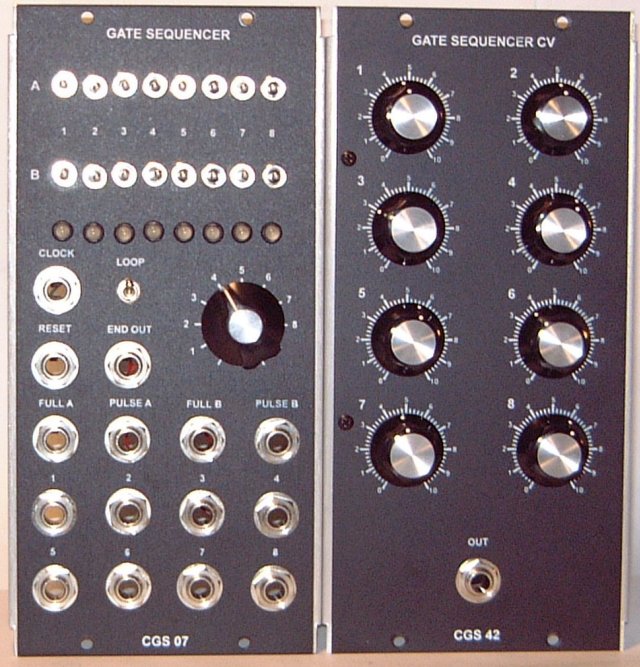

No special modifications here - I just populated the boards as issued. I used separate panels for the 2 - so I could later build Gate Sequencers without the CV adapter. I was able to mount all 3 circuit boards for the CGS07 behind a double-width (2 Moog panel widths) panel. See the photos below.

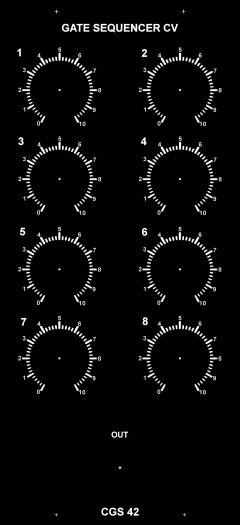

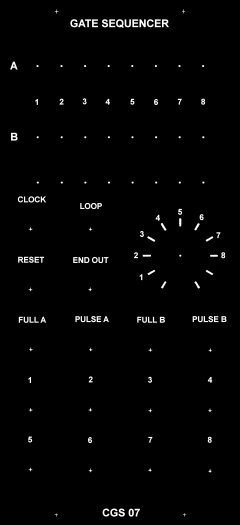

Artwork for panel silkscreen
